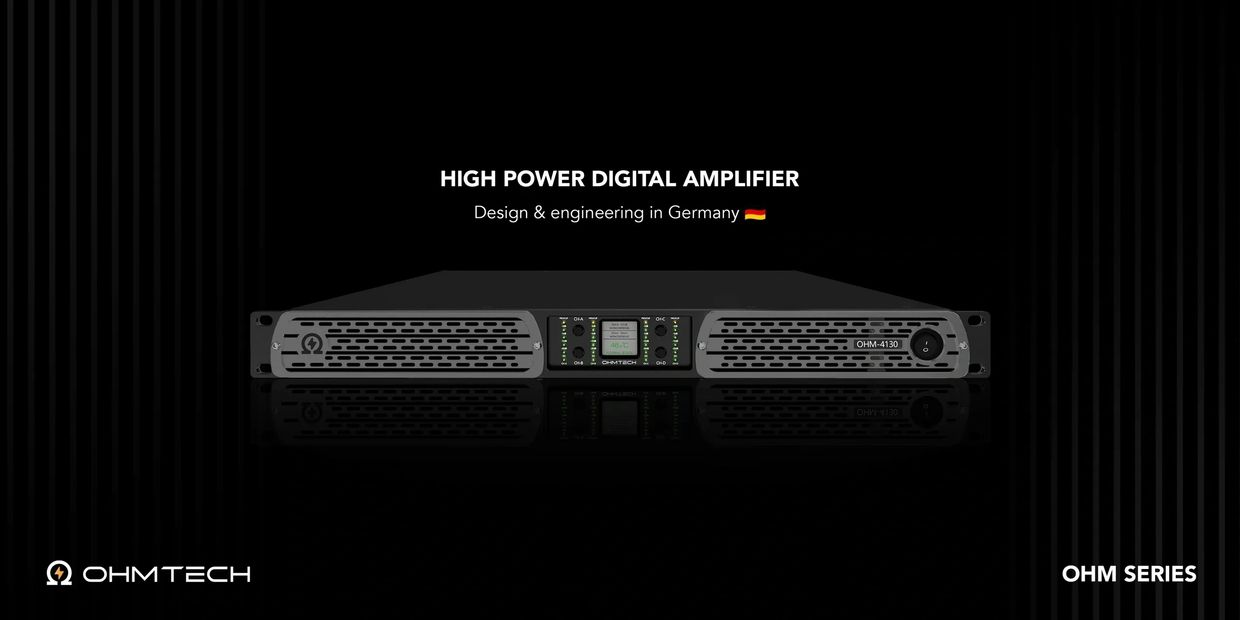

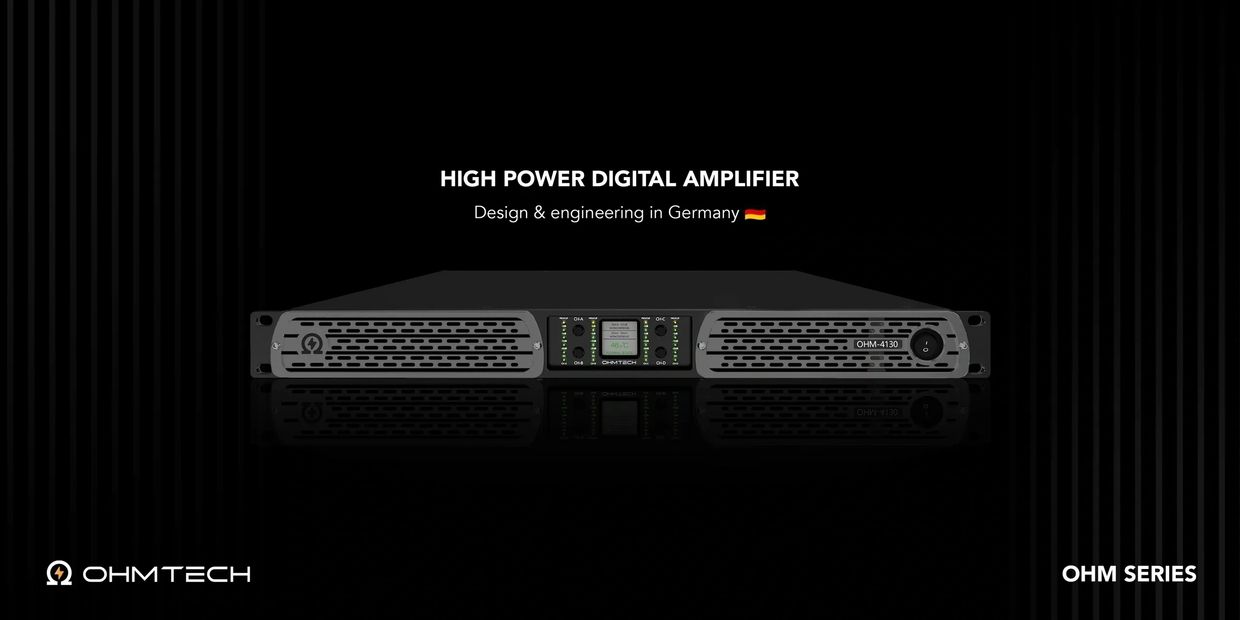

OHM SERIES - AMPLIFIER PRO
Powerful Class D amplifiers
- 4 Channel Class D Digital power amplifier
- Mini 1U size,convenient for Touring Applications
- Suit for Top speaker, full range speaker,Line array;
- Work Under 2Ω steadily !
- Precise and Reasonable circuit structure
- Bring supper reliable sound
- Bridge-mode operation
- Original Neutrik XLR*/Speakon connectors
- Temperature protection;Over current protection;Short circuit protection built-in
High performance 2-channel amplifier
OHM-2250
Amplifier 2 channel
Stereo Mode: 8Ω - 2*2500
Stereo Mode: 4Ω - 2*4800
Stereo Mode: 2Ω - 2*6800
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x480mm/ 13KG
OHM-2300
Amplifier 2 channel
Stereo Mode: 8Ω - 2*3000
Stereo Mode: 4Ω - 2*5100
Stereo Mode: 2Ω - 2*7140
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x470mm/ 13KG
OHM-2350
Amplifier 2 channel
Stereo Mode: 8Ω - 2*3500
Stereo Mode: 4Ω - 2*6500
Stereo Mode: 2Ω - 2*7500
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x470mm/ 13KG
OHM-2420
Amplifier 2 channel
Stereo Mode: 8Ω - 2*4200
Stereo Mode: 4Ω - 2*7800
Stereo Mode: 2Ω - 2*8500
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x470mm/ 13KG
High performance 4-channel amplifier
OHM-4100
Amplifier 4 channel
Stereo Mode: 8Ω - 4*1000
Stereo Mode: 4Ω - 4*1700
Stereo Mode: 2Ω - 4*2890
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x480mm/ 13KG
OHM-4130
Amplifier 4 channel
Stereo Mode: 8Ω - 4*1300
Stereo Mode: 4Ω - 4*2400
Stereo Mode: 2Ω - 4*3000
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x480mm/ 13KG
OHM-4160
Amplifier 4 channel
Stereo Mode: 8Ω - 4*1600
Stereo Mode: 4Ω - 4*2600
Stereo Mode: 2Ω - 4*3500
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x470mm/ 14KG
OHM-4200
Amplifier 4 channel
Stereo Mode: 8Ω - 4*2000
Stereo Mode: 4Ω - 4*3400
Stereo Mode: 2Ω - 4*4760
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x470mm/ 14KG
OHM-4300
Amplifier 4 channel
Stereo Mode: 8Ω - 4*3000
Stereo Mode: 4Ω - 4*5000
Stereo Mode: 2Ω - 4*6860
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x470mm/ 14KG
STABLE DOWN TO 2 OHMS
Huge output power and stable down to 2 Ohms
The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
Dimensions and Cooling system
NOTE:
The size is 437mm inside of the device(without the cover plate and front panel).The size is around 472mm of the complete device,but a little bit different size in the different front panel.Some series with different size that had not shown,please learn it in the parameter.
Tunnel through cooling system
Cold air comes in from the front panel of the equipment, forms a duct through the radiator to take the heat away and out from the rear panel of the equipment.
